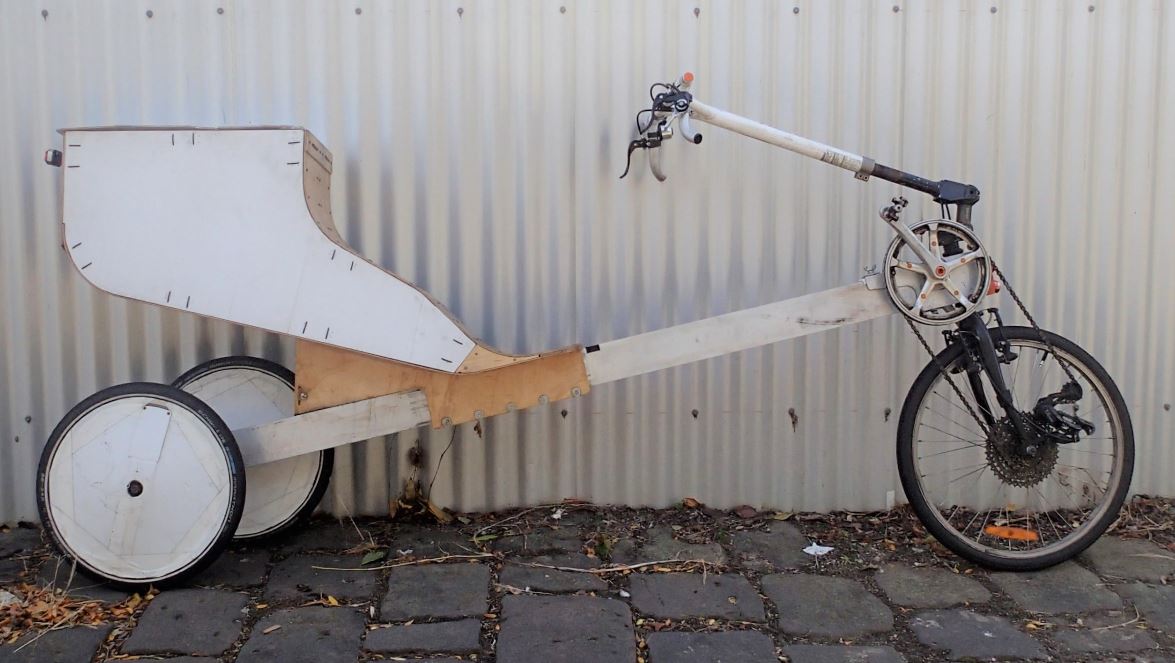

Trike Plans on Thingiverse

Right

Left

Perspective

Storage area in aerodynamic tailbox
Hi

Over the last few weeks I have been putting plans for my recumbent trike  - as shown above -  on the internet thingiverse site. Here is the address, https://www.thingiverse.com/thing:4201871 . The plans are not completely finished, but I thought it would never be finished or even started if I kept it on my computer till everything was completely ready.

This is the trike I rode recently in a 200k hilly Great Ocean Road (Victoria, Australia) Audax ride and also a 1200k flat, windy Murray Tour ride. The only difference is that a fairing was fitted to the trike on these rides.

For now, the thingiverse pages are almost done, and I will polish off the rest soon, but here is the to do list.

Trike pics: Update on thingiverse as per photos above.

Steerer: This is mostly made by cobbling together parts from scooters, so I won't do formal drawings of the parts, just a pdf with descriptions like I did for the forks. But here are a few links to my blog. First steerer using up to date parts, and 2nd steerer  , these contain most of the info needed. Usually I drill through the steerer to hide the cables as well, the end result is shown in the pics but the process it not described that I could find.

Big picture: I'm interested in highlighting where different technologies can be used to make the various parts described on thingiverse, and . As an example the trike has cast aluminium bearing housings and it would be interesting to know if a version of these could be 3d printed at home.
I'd also like to promote the use of my plans in schools. The complete set of plans involve aluminium tube drilling and sawing, aluminium casting, 3d printing, sourcing parts and assembly of timber components.

A miniature of the same trike is available as well as the full scale trike, here is the link, https://www.thingiverse.com/thing:3359741 , read the summary first!

Could you help me please: If you have links for diy recumbents on thingiverse or elsewhere, or schools teaching recumbent building (I did find this one) in classes, please let me know, cesnur the at symbol  iimetro  dott com dott au

Regards

Steve Nurse







Monday, April 20, 2020

Peugeot NS22 derailleur restoration

2 Simplex derailleurs from Peugeots and a Shimano from the shed.
The problem!  Busted pulley wheels from Simplex (left) and securing bolt is too big for the equivalent Shimano parts (right).
The solution!  Drill out the Shimano centre bushings in the lathe and the

side-plates in the vice.
Back together!

And here's one in action. This design is great but its not obvious until you see the part installed. The limit screws are in plain sight, and its simple to see what they do.

A new addition bought today, DeVer Blue which was a trade in from Bikes De Ver just down the road. I pootled on it in our street. This was the first time I'd ridden one with its original derailleurs fitted since starting to muck around with these in February.

For trainspotters! You can read all about these derailleurs in The Dancing Chain by Frank Berto
Yes I know, if your not into bike mechanics this is probably as boring as f....   all hell. Nevertheless this is a bikes blog so here we go. Pics above show resuscitation of a Simplex derailleur using parts from the shed, and a new addition to the stable. I plan to sell Dever Blue with crate adapters on it to see if there's a market for my design.

Regards

Steve nurse

Saturday, April 18, 2020

Peugeot NS 22 frame straightening

End Result

Machined timber piece in frame used for measuring rear dropout allignment which is....

121mm separation

And 22 to the top dropout.

Timber piece is transferred to orange frame,

then the frame is stomped on to straighten.   This is done one frame side at a time.
Start

Hi

Today I went on with work on Peugeot NS22 bike frames.  I worked out that I could straighten the orange frame and started on that.  Anyway, good results as shown above.  It was helpful to have a partially stripped down good (white) frame to get dimensions from.

Regards

Steve Nurse

And here are the day's other projects:

Workbench and storage outside: all this bench had been made from scrap from the neighbourhood up to yesterday when I went out and bought (and rode home by bike with) the lower shelf material which is 2 sheets of 900 x 600 mm plywood. I cut the plywood into shelf-shapes which accommodate the pump box which is underneath. Still a bit of work to be done on this project like varnishing and securing the lower shelves but I'm happy with progress.

A week or so ago I had my Luxus bike on ebay, but it didn't sell despite a low starting price ($70) So now it was only getting in the way so I drilled a hole in a rafter outside so I could hang it up and out of the way. Reasonable offers accepted!



Wednesday, April 15, 2020

Dead Peugeot Society

Checking out the frame of Yarraville Orange.

Ouch! The back's bent a bit and the pedal bangs into it.

Yarraville White

Gearchange, derailleur, chain. Donated from the dead Yarraville orange, and should turn Box Hill Purple which I intend to keep from a single speed into a 5 speed. Woohoo.
Hi

Over the last few days, I've varnished a few of the wooden crate adapters I made and also started work on the Yarraville Peugeot NS22 bikes I mentioned first in this post. Because it is the better-looking frame, my first thought was to fix the orange frame as a standard folding bike.

But there was a problem as the back of the frame was bent.  This came as something of a relief, as it relieves me of having to find extra parts to fix both bikes. So the white bike will be fixed, and I can make very good use of the orange frame as a donor vehicle for other projects. Firstly I can put gears on Box Hill Purple, and later I might turn the orange bike into a front wheel drive recumbent.

Regards

Steve Nurse

Sunday, April 12, 2020

Crate Adapters for Bikes


Dead White Peugeot as found
Around our Clifton Hill neighborhood you see various abandoned bikes, but I don’t think any of them stayed in the weather longer than the Dead White Peugeot NS22 of Field Street. One day early this year I got motivated and put it out of its misery by dragging it home with me. The Field Street residents didn’t mind me removing it, and said that it had been there 2 years or more. Certainly I had passed it many, many times.

Wheels for the white bike came from this sort of bike, a Byk 450
 When it was home I set about fixing it. Its wheels were 22 and 24 inch and steel, and didn’t look worth saving.  But I happened to have aluminium alloy rim 451 size 20 inch wheels salvaged from Byk kids bikes. I’ve used these for recumbents before, so tried them on the Peugeot bike. They looked ok, but the different rim size meant I would have to work on the brakes to make the rims and brake pads line up.

Replacement front brake on white bike.
 With some centre pull brakes from the shed and some metalwork, I managed to fit new brakes to match the new wheels,  and voila the bike is already better than before. It’s lighter, has better brakes and a wider gear range but is lowered a bit.  Some more work and the bike is rideable again with a new crankset with shorter cranks and a cassette bottom bracket bearing.  It goes ok, and the shorter cranks mean the pedal clearance to the ground is still large enough despite it being lowered by the smaller wheels.

Replacement rear rack on white bike. Diamond shapes fit into the pattern in the bottom of the crate and help secure it.

Crate bolted to rack on white bike.

Then came the load carrying. The back rack was missing, and first I made a wooden and steel rack for the back. Milk crates are a local favourite load carrying device for bikes, and I happened to have two of them in the shed holding my ridiculously large collection of bike tubes.  I did a switcheroo of a big black tub for the milk crates. The black tub does a much better job of containing the tubes and liberates the crates in the process.  Since then I’ve kept eyes peeled for milk crates which turn up from time to time at our local recycling depot. Ask nicely and they are free, and so now I have a good supply.

White bike at my hairdressers, Victoria Street Richmond.
First front adapter for milk crates on Peugeot NS. It uses an outside frame to hold the crate in place.

After a few trials and attempts, I had crate carrying sorted on the resuscitated Peugeot and quite liked the front carrying setup.  It is an adapter between the bike and the crate. The adapter slots in to the rack and is hooked in. Then the crate hooks in to the adapter, and that leaves only the opposite end to be held down. That is done with an occy strap pulling the crate down, and the adapter – sandwiched between the bike and the crate -is automatically held down too.

Victoria bike using rear rack as stand.
Victoria back rack detail

Next I have a go making a back rack on a Victoria bike, and that works well too.  This time the rack doubles as a stand. With the back wheel it props the bike vertically, potentially saving space in flats or garages. Some finishing touches to this adapter included bogging holes, varnish and a plastic tube over the back protecting the timber.

A few days later, the state is going into extended Coronavirus lockdown, and as an isolation project I bought another Peugeot NS (Box Hill Purple Peugeot) folder for $50. This was the complete budget for the project up to that time as everything else was found or came from the shed.

The Dead White Peugeot was missing the back rack, but Box Hill Purple Peugeot wasn’t. However it is missing the derailleur and is set up with only one gear. I still like riding it though, and have done a 22k round trip on it to collect parts. The gear it has is the middle gear of the standard 5 speed setup which gives a development of 52.3 inches (42T front, 18T back, 570mm wheel).

Top of 2nd front adapter for crate on Peugeot NS. The diamond shape fits inside the crate pattern.
Bottom of the same adapter. The square ply hooks or keys into the rack.

The gearing can be restored later, and this time I concentrated fixing work on load carrying and crate adapters. I started by making a front adapter for the purple bike. I have spare 7.8mm plywood and 28 x 15mm reclaimed Mirboo at home and used that for this build.  It all works ok.

Rear rack plan

Up till then, all the adapter builds had been by-the-seat-of-the-pants, just cutting timber to the right size by measuring the rack and not recording anything. But for the back rack adapter, I decide on a more engineered approach, hauling a loose rack inside and using 2d cad to draw a plan of the adapter before making it the next day. This time I didn’t use the Mirboo material and stick to just plywood which works fine. There are 3 minor plan mods which I record during the build and put back into the cad plan later.

Box Hill Purple using rack as rear stand and occy strap to hold front wheel in place.


Finally, today I shortened the rear mudguard on the purple Peugeot. This means removing the rear reflector and light from the mudguard, but it allows the bike to stand on the rear rack and back tyre without the mudguard interfering. This arrangement works fine but the front wheel flops. However, an extra occy strap can keep the front wheel in place.

Back from a shopping / exercise expedition on Box Hill Purple. My video shows it taking about 80s to fit both racks, and 25s to take them off again.
 So what do my adapters do that other ways of attaching milk crates to bikes don’t?

Well most of the benefits come from the adapter being a separate thing with neither the bike or crate altered to achieve load carrying. This means the bike is easily switchable from stripped down (racks only) to one crate (front or back) to two crates (front and back), so the rider is not locked in to any particular setup as occurs when crates are cable-tied on. Each crate has a capacity of about 28 litres.

Crate bike near some crate seat mates.
 The rider gets to choose their crate colour and can also swap between a range of colours. The crate can be removed to carry whatever’s in it when stopped (ie for bringing groceries into an apartment). Lastly when released from the bike, the crate is free to become whatever the user wants it to be. The website mymilkcrates.com subtitles itself “Portraits of milk crates in their many natural habitats” and shows them as individuals or stacked together, as tables, chairs, steps and artworks, and all of these become possibilities.

Bike with cable-tied crate at Northcote plaza.
Cable tie details.


What sort of a design is this anyway?

In one sense this is a concept design. It shows what’s possible with cycle load carrying if you look beyond the most expedient (attaching crates with cable ties) or most conventional (panniers for load carrying).  New possibilities can open up.

That covers a lot, but this design itself has only a very small niche! It is load carrying enablers for a clunky type of folding bike that has not been sold new for at least 30 years. It enables carrying one particular type of crate, and I don’t even know whether these crates are available in other cities.

That said, this could be a design for the times we are living in (with covid 19 travel restrictions), enabling simultaneous DIY expression, load carrying transport and exercise on quiet streets. Will these conditions come around again? Well I hope so in a fewer-car and less polluted future but no one can tell.

Back to the present, I will probably design, draw up and make a front rack just from plywood and see how it goes. After that who knows. Selling bikes with adapters is a possibility as is getting adapter kits made by CNC routing.

There are more details in my series of blog posts starting here, written as repairs, builds and designs were taking place. If you are interested in contacting regarding me these designs please send me an email, cesnur (the at symbol) iimetro dot com dot au

Regards  Steve Nurse  April 11, 2020

Further Links

And is there something in the water in Melbourne? The only other images I found of NS22's with milk crates (using an internet search ) on them came from Melbourne's little bikes blog about 10 years ago, in one pic the crate in on the bike, in the other they are lying randomly in the background.The blog praises the NS bikes, "the French bikes are beautifully made and they last and last" and "I have always fancied older Peugeots, and that goes for Peugeot folders as well"

Here are a few more links:





My video as mentioned previously

Simon Ancher Chair design showing a designer's use of milk crate on the European Chair Blog. Simon published a thesis on the subject.


Milkcrate Digest Australia this is a US site that is no longer updated but this part of the site points to several Australian innovations.


Treadly and Me
is another Melbourne site showing bikes and artful adaptations of crates.

 My NS22 reports in this post on carrying heavy loads in a crate on an NS22. Overall the blog is very refreshing and I can relate to "NS22" and his series of quirky bike mods. He reports on Peugeot NS22 and related bikes when they come up on ebay.

Saturday, April 11, 2020

Box Hill Purple April 11

Back from shops, the bike and milk crates coped with a considerable shopping list including a cask of wine and slab of beer cans.

Mudguard off.

Mudguard modification

Cropped the back bit of the mudguard. The one I modified is on top, an original one below.

Mudguard mod is so you can do this "stands on the milk crate rack" trick. Unless it was cropped, the bike would rest on the back mudguard instead of on the back tyre. This setup isn't perfect because the front wheel flops around through almost 180 degrees if left to its own devices.  This mucks up the front brake a bit. It needs an extra strap or something to lean against to keep things straight: for this photo the red occy strap is doing the trick.


Hi, pics show today's shopping and progress with the purple Peugeot NS22.

Regards  Steve Nurse

Friday, April 10, 2020

Box Hill Purple April 10


At Jeremy and Alyson's
At the Hive shopping centre

Updated plan for back adapter.


Hi, Here is today's action on the Peugeot NS22. I went and delivered some wool for another friend, Alyson, and while I was at her place discussed bikes with her partner Jeremy. And on the way home I found another crate, the orange one shown centre. Not sure if I am depriving someone of a smoko chair, but it is a bit late for that now! Unfortunately The Hive shopping centre was not open (Good Friday) but I paused long enough to take a photo.

Once home I arced up the cad and updated the drawing I had made of the back adapter to include yesterday's modification.

Oh, and I almost forgot, this site shows more milk crates on bikes than you can poke a stick at. Poke around at https://mymilkcrates.com/  and there's more uses for milk crates there than you have ever imagined.



In the afternoon I made this video, hope you enjoy it, the story continues here

Regards  Steve Nurse


Thursday, April 9, 2020

Box Hill Purple April 9

Today's engineering refinement was to make a slot in each of the crate adapters (where the hook is) so....
the front and back adapters could be carried easily with the crates off.
Milk Crate #0, And then I set off to get some crates. But I made a small courier stop on the way, at the direction of my boss (Christine Nurse) dropping some wool left over from a previous find with  our friend Christine D. Although I declined a cup of tea (I was On a Mission) we managed to discuss dog psychology, clunky Peugeot bikes, stolen bikes and recumbent trikes.

Milk Crate #1. This was quite unexpected, riding along Gilbert Road, I came across this lot which was labelled "free stuff" (actually "free sh^t") and included a ......

green milk crate of the type I was after.

Milk Crates #2, 3, 4: A bit further on, at the Outlook recycling center, various crates for soft drinks, bread and milk were for sale,

along with lots of bikes of the less popular styles,

and I .......

purchased milk crates #'s 2, 3 & 4 for the princely sum of $1.00 each. This is how I took them home.
Hi

I spent about 3 hours today riding the Box Hill Purple Peugeot NS22 single speed clunker on a 22k round trip to the Outlook recycling in Darebin.

Don't have much more to say beyond what the pictures do, except that the trip there on the mostly quiet roads was much more pleasant that the trip home on the much more crowded creekside bike path. There were walkers with phones, walkers with headphones, speeding cyclists, slow joggers, fast joggers and families and kids on bikes in abundance on this warm Autumn day. I will try to steer away from it next time and come home a bit less ruffled. Next post is here .

Regards  Steve Nurse

Sunday, April 5, 2020

Box Hill Purple Racks

As purchased

Fixing brakes, dewiring.

With front crate fitted

Front detail

Milk crate on bike has gone to hang out with its mates being used as chairs off a nearby laneway.

Front adapter, underneath. The tabs hanging off the edge are at the front. They slot under part of the rack and the square tabs slot in. Cutouts at opposite end keep the occy strap tidy.


Top. Diamond keys into crate base pattern.

Side view.

Test ride.

Fossil phone communication (received text message) used to get the address for Yarraville Orange and Yarraville White pickup. From here the next step is to look it up in the Melways (street directory book), not whizzing, swooshing or otherwise spiriting the address through to some sort of gps app thingy.
Yarraville Orange and Yarraville White.  This morning and yesterday I hung the wheels up high to make room for these extra bikes.

Me in the backyard with Box Hill Purple.

Hi, today I finished a front bike adaptor for another Peugeot NS22 folding bike I bought which I'm calling Box Hill Purple. (Purple Preston Peugeot or Box Hill Blue Bicycle might have rhymed better but I'm going with the truth on this occasion!) Anyway, the bike is set up as a single speed, and it worked fine on a short shopping and get-out-of the house ride this afternoon. I will work on a back rack soon and might even do an engineering drawing of it before I start. The locally-found 7mm plywood is a good material, I think the whole of the front rack could be made using 7mm ply, a few screws and an occy strap.

Regards  Steve Nurse

Today's ride for shopping, April 6, another crate bike with.....

cable ties for fasteners.
Update, April 7, 2020. Using 2d cad I drew this plan for the back rack last night, and
used it to make parts for the back rack. I bought an extra occy strap.
This was the fairly careful setup I did for cutting 28 mm wide strip of plywood. Tommorrow I will finish it off, its just a bit of sawing and screwing together mainly.
Rack on rack adapter to position timber strips.  I didn't account for the rack supports getting in the way, so

drilled out some clearance holes. Will put them into the drawing soon.

Without rear milk crate

Underneath


With 2 crates.

Another way to do 2 crates!

Side view with bulldog clip
Hi

Late this afternoon, I finished off the back crate adapter for the bike.  The drawing worked quite well, and I wasn't running to and from the bike all the time measuring. A few small tweaks to the drawing, not much. Latest drawing below. This post covers several days work, I have since reverted to daily updates, starting here.

Regards  Steve nurse
