![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEg0FTGRuO4jdbPaYc_cpcR2rqkxSnCWS2LQoxmH6wiApJv59nAsoL-dmR4G0uIpha7OwwtI3-eDg-JpAEsOefDLM7HorD7zQxBsbwFrSgaxLnrfE7K2PlhTz6gfcPzRjT_WX35zNjBCHN0I/s320/Capture10.JPG) |
Steerer assembly parts include cast aluminium parts, 2 35mm seatpost clamps, 2 aluminium spacers, the fork and ther timber steerer. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEgKDzHr9q4LuH2tQ2hW3vTf5Z1bvd3vmLC4-WrzksIJNuVsp6d6zoyr9mmBz9TxTk0lzGBwCycF2d8RxqQYMoGQ5Hdp-sn3UXqbx2QssNsiv2XXZg-VzXF6iii7HU4AkW-uGqGiy3MRD1xS/s320/Capture11.JPG) |

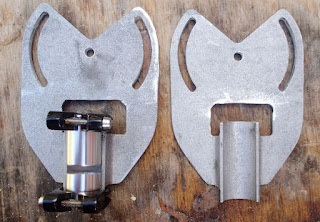

The cast aluminium plates which the steerer pivots on. They needed the rectangular hole in the centre opened up because they were designed for a very narrow seatpost clamp, and the ones I have are wider. Left is modified, right unmodified, so that now..... |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEhORW8xmAxBvOUpXiu23ZQ_pBY-zs8lbxByVrlIhfZxcZBpGFzQlH6FLETH5RA6wAWuugqjpuA3IPebn3JublFg_6yrCpKSOH0fICUfVtteNQJ_6WVw00H41iVxZpi6nV1GM3ouBWeYiL5b/s320/Capture12.JPG) |
it all fits together like this! |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEhMq8twLuHZBIrzZuDf-DfJxMJhgU9e7v3S3hF_V5PXwDTMsflF20fXnWQYJZEL85OvxiJ2L8hKeRILM8FfsOns5mPh8MKD21cy2HeA-2y7BgemchE7FlDOYq-2ym1hwNlZMUPLd988FQdW/s320/Capture13.JPG) |

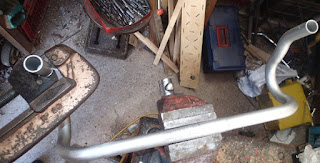

Cropping the handlebars |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEgXTk3VRW2qWgneTZp7tgqQl1G4TjP_YoqsEKcKwyU8ebm_vNILvf9ndYPtEC1VEKgQUv6wKpw0z4R6UJCnsUREG84MQ-ZLNS1lXQWSu_8DOVPgtghzERaejcW1hQtaoXEs5ls_r-gCsidB/s320/Capture14.JPG) |
Adding a slot for the cables to come out of the steerer and into the fork tube. This is the same process I used the other day for the face of the steerer, but this time the slots are in the hardwood pieces which are top and bottom on the steerer. A couple of screws were in the way, so I removed them, then cut them short before putting them back in after the slot was made. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEieK6vSefrZnlRQbnshMZL3lVd3LYEzwuuxGmKU8p7kCUcUFwa7PoVl_kYXUQPtT644TYtfcKPK3zMCknq_4deoPWj3vDzfGNPEv3vm9mXulK-8XRsBJ_oUyX4Sh9p1RM_4pHXYagFP7syW/s320/Capture15.JPG) |
Good progress by the end of the night!
|
Hi, here are the photos of today's progress. I had a break at about 2pm and went for a ride it took visits to 4 bike shops to find enough flexible noodles (6) for the end of each cable on the trike, but it was worth it. The mod to the fork I did yesterday seems to be working well, and although a few tweaks are still needed, I think I can get everything working without the chain rubbing.
I could have done a midnight blocky on the trike, but will save that for the morning. Still a bit to go, in particular the wooden sidepanels need a bit of altering before they will look halfway decent on the trike.
All for now!
Steve Nurse
