![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjsoTAt74wesRdAnr4l5d94O9qL7D9LMRjxbg1WyQtWFPNKJuYSndm8nwWJ4ghZr-vOyiSHNBRwKPIQUeAwxDh5o0gW97q9p3XKNZZ_HjxxpSTAf0MIQdapoy8Kdc0_LQ7X99rfMTV6KIuH/s320/P5140225.JPG) |
Some running repairs while making the new trike, the brake cable is snapping so I |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEiTrIPl9kExfNiK5wUanZmAoRp7i4gYSqUTb2Q1NPbcbn1N-C6_mkPeVC3oH6uGiJF5ISIaP7Xg8YFVomtkKtF1SlJ0HSLW5sgvWeCBOk9R_GdbGZrUr5RSjZJE74C62nL9CaAaEjv_1bbm/s320/P5140230.JPG) |
added brake noodles both sides while checking and replacing some brake pads. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEiVVOx2R-sD2ScejjYLaN34nq3EUOF5oCulAGEH8drXPhECiPG2W_NvV6FC8Y1G0w3LI4ZnH65IuXpiHidverw5sPp8HN68_gnbUUPMEugf5p103C7Tj3zVSK5APwaVT3Lwc8G4hdr08HIP/s320/P5130220.JPG) |

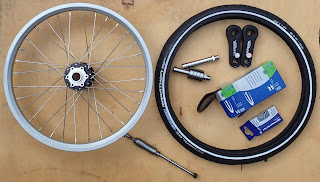

This shows most of the items needed to make the Vuong rear wheel setup. As well as 2 x 355 size tyres, tubes, rimtapes and wheels there is a set of replacement bearings, a bearing tool, 75mm aluminium unicycle cranks and matching wheel shafts. I had the wheel shafts custom made to my design and have some in the cupboard. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEhwhs2dwHbKUPAXnvz3WHFw2K3ILt2oxmywIAA_n_rH53GXvm2uwdobSB3SjeO1TJ0VKajznp9Q3VUXT-xLeb0BPT0GaDFHR46R7kqHgeh2EpHzj9-HpIDzXcowQiZ83B9Ovmv1Iu1J3cZn/s320/P5140226.JPG) |
The bearing tool in use. It has a taper setup to allow it to press against the existing bearing spacer so the spacer and bearing can be removed. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEiVvRZtKjVbOZ2M5J4PZsg61tPzKiGKDJpVCMgumi_s-gUGmjGrEaz0lRT3_EYt-5bviQr6e5CuGvLj-n2YF4a6RIevjt0JHgnTcAG2595T6lSN0YbxyB0decB7UY5yd9eRFRxtzhAUb0sg/s320/P5140227.JPG) |
Near the end of the bearing swap, this setup with an old bearing, large bolt and washer is to tap in the new bearings. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEiMXQZKZ-NE652NvjkIpSSPWiLdeRL8jW_AKu8HDLor-LgCrJyXiJ9fV768Wsk4y1PTXCfVCI042rh9xknT6mhzjqb1-QUxqOJZT18B2STe5ESekgoUAp7yv7_0PPpJwPLIa3cbYCJscQAA/s320/P5140228.JPG) |
Bearing swap done, all that remains is to turn a bit off the length of the wheelshafts. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEhdGoM4rneyA6aOCE9N0o5f3E4pcZg7qXSkr1-6E50aimqcQ_4MC94rFZB063H6ESC-M5CkpWCuFniFv4Sf1t8whaNlhDBDlMMPL4F3I_zmpGrumtIypf4k6A8_xYHiQ3DemjK0RMm8pYog/s320/P5100213.JPG) |
Steerer blank which was included with new parts. Although I made one of thse in part 1, I will make another with the new parts, which have an up-to-date design. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEg6j-Yu125HOW5bJSacWjoR1c7PFprfoKdt2qLzsVVJ-pfJtcTf5LNml_KmsiApRwGbixrcISRp_vC1F4S_zZGK0S0xdUoJdqOqfn74WIQ6sIbj0Vdf7lml-dGXBgSbyur7yMN5Bi0sZ7Wm/s320/P5100214.JPG) |

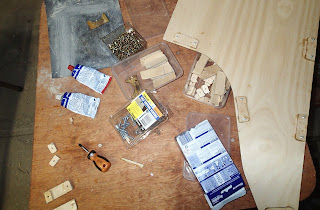

Finishing the plywood side panels, some of the parts were cut out way back in part 2. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEgxc5jMPDZCzPs9lU6m0o4QimlrrA1ow8hFk3lV6FWlmFxldu9wLSlqGK79p4oSa3vPNIx9CEoGIc2kcYNewifGiNN8HdNkCDsAeABwqRaSo1QgLuIBQVMPcYkeqqTmpFm-mc6_aeDr-G7y/s320/P5130215.JPG) |

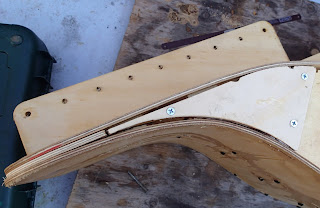

Finishing the seat. The screwed section of the seat has 3 layers of 4mm ply, and this is thick enough to.... |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEh1UwgIB6fRbUIoIYSVveg_ehNJPRPMTy66g9KjDUOMXLZez40siGxVE8Vr-v82cT2zPHKQrahC7lcowCSz0rZ2zOTo2wtgEmiqKYitvhTaF4iJLSGVyUT6QDokSl6v91CNV1dqIZ_8Xxux/s320/P5130216.JPG) |
screw the seat base and top to its edge. This gloses the gaps in the assembly. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjNaqlK-q5Zfh4n-AU15JugefJsAdhz04zUFs8WMZE6oCc_Fdz-0MiMLyNH_7j5ztOrfZmjjGXSb-vupUK020JEbRAlDWTiPeO3EI9OJdMFqeNcI3bV4feO3jLUSC5tgrjB_gkvQ-TgUc2E/s320/P5130222.JPG) |
Cropping the screws sticking out from the plywood sidepanels. |
Hi
As you can see, I have been quite busy on the trike. tomorrow I should be able to put the wheels on the frame, but there is still a steerer to be made and the seat to finalise. All for now!
Steve Nurse
