![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjtsUh3Ls2GeIsGgMIJN2QZgM6Z9EtlSvV04BThD8i6QjfQW3gPXfFHCFmgu07Px4CLEeXJZkGL8WPoY-HXH_kQb7n4iL7m6rI0WP5dNv1k3LBUDjqWnHraC690h8DryXuaQ109fzf6fy76/s320/wooden+trike.JPG) |

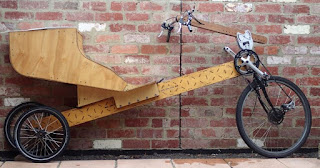

A mockup of what it will look like. I took the seat / tailbox from one trike, the steerer from another, and plonked it on my timber frame trike. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEi0yu4c51UiUd-nvBfAl0hi-SZGW_9hgP4Sea28zNwlep5h85YoW4e8U6edfVYL0cdtaU1OjAqyUn_Pan7vrJIhe6oU64xw3riSSJGWe5iSt_1eo0132g-IXtb3k1FlqVAnFQATcS7N4ALx/s320/Capture4.JPG) |

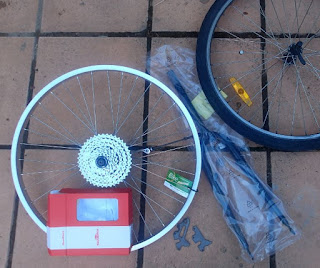

A few parts which have been gathered together to build the trike. 7 speed, 26" front wheel, 11 - 40 sunrace rear cog set, 26" unsuspended MTB forks, custom laser-cut dropouts. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEgYVXoLXwE7angRRpcqds_wEjGzAcwXVGePQ-Q273i79kHHG5_hNnfxzs-Z2ql_9tyFwuGHFVmoBz1wT8eNpDN-MsTBOz0ZG8C-ysj8ynzvS7c_I7B1aPJi7yhRhgZjlcZoa_GLoV7_rNmc/s320/Capture5.JPG) |
Bending the forks to suit the front wheel. This process is repeated a few times until the gap between the dropouts is wide enough. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEg5prpkpzZL7v1yXZGiejXmIoKtcJPOTXW88Xxv0VR4usxkKrXU3LOTF48HDeNXvH6QXntGsNowkBEKF05uJ3NAU7qWNhjpjDSP3zcQxOTS9ZIZr7jozUmKqS9zipNERaR4jRyvcgVeZuSe/s320/Capture7.JPG) |
Jig for keeping back brake bosses in place while brazing. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEgKlfnKKrzgm7-SvL9qLSrpl0brb-w0FZIn3UTQvZdo2ApszKSBoE-I5DCdVLrc9CJ2hus-Llcl12MNkeN8KLFD7vCwpVS1LRsPUwh9mDxmp2xDXC1GbeReF8TmNbcq6Nuh0uw6lXyGTTVG/s320/Capture6.JPG) |

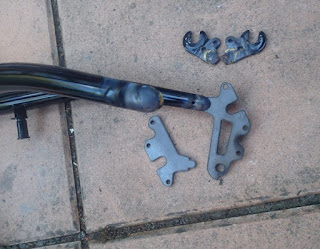

Standard fork dropouts removed, new one in place |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEg4a8vQR35SsfoSdfv1arPRF4zKPFyfCxyOcWJFyShyphenhyphen-BibVaUgahmwL4s5DBGGCqLP1JAaNF-FEOXRmb3BMkNlMMjdAVRuqGmUdi3eUAG4d6xxDszLQ8pRj-fV7IGxYgM9DGiEG7Y_tI0-/s320/Capture2.JPG) |

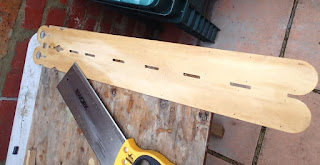

Timber steerer side-plates which were made from 1 large piece and need to be sawn apart. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEgmQr8SYr-R5-PuTq0qlbAQqYhcZhpTu7WgzEh0qWdwb7h9XOEqWzRyAqqkoZvxml8v6E_C2b4bIy9fcW8FmkPb8RL7jp75qsGfz1cTeR7tZyE0Ro-zWYb2qPfD53RhamiliV61ExURwtAD/s320/Capture1.JPG) |
Reaming headstem parts so they fit snug around the handlebars. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEilyIsLelHz8otnxWHzCzphMJMRJQEHtVxeGGiz1oXEg5DT8OjYc-32xUF8hbsZv0DxSOvVr1sXFGgxw-aVbtf02Kh7apJR_aSk8-2z-Nj-vDaA5Comg0iwnX7ZErIiCJCCK6i6yH7XfPwr/s320/Capture3.JPG) |

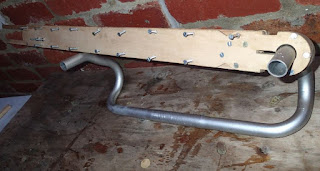

At this stage the timber for the steerer is all predrilled but needs to be glued together. Handlebars were acquired at the Abbotsford Cycle market as per my last post. |
Hi
(June 25, 2017 You can skip ahead to a video of the completed trike. Here is the link )
Over the past 2 years I have made 6 versions of leaning trikes which includes Vi Voung's "ilean" wheelset design at the back. This has all been part of an industrial design master's degree, and I've been on a scholarship which has been my wages (woohoo!). A few months ago the scholarship ended, I'm pootling around now looking for my next gig.
One opportunity that came up is the Dangerous Designs timber design competition, and a few months ago I decided to enter it. I have built a few wooden HPVS before and even plywood leaning trikes, but the plywood leaning trike (like the ones shown 8 photos down here or in this video) wasn't made to the you beaut, latest spec and I didn't feel like entering it in the competition. I mocked up what my best leaning trike could look like, and this is shown in the top photo.
But still not good enough! To enter the competition properly, I really wanted to build a trike to my latest and best design, so I set about working on the design. Because previous designs were part of my work and masters degree, I didn't document building them very much in the blog. But I will try to document this one a bit better, here we go with part 1.
