![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjr38sET-FwSPWNLl4Ufm7IlxkX0_ulOMka_PfjwO2wgGjrAJcgK-nYmy4yeiQRiA1142CY5tuxGGxLgY88bQ7D61WgziVTYMEFXw79xxILrONBQPJNZFlyf71-eUfure3CzCMYO-gY96A/s320/br1.JPG) |
Current bike showing palm forces on brakes during decelleration with red arrows |
|
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEiM5SbvkhEKKnakmVBt7EpoLcp3UdXkwdRCtSki1uNP-DxZse8CfZtCfSxEky3lq1_tGBncOPbtyfFkKUZBCrs41cB5Ek-ApFBwsMdq9_Q25NH5RfIq7bAhC5-PsYjX2auZKlTqsvU3BHI/s320/br6.JPG) |
Mule train bike with a set of folding handlebars.....
|
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEimTYxkFgOQE0UCFf0eFdi4vQ2Uo8ry_NkKitsT8vtob0C8mpBgFwbwWsIRkSFlTQIpfCXqKmZrWJ9wWLQtdR3qdSvpSnNz8Go45z0QKA0UuHpvlkzJMXdOQ5lJSK_-3zwZLDALt5GBOhg/s320/br8.JPG) |
which I have now stolen for this project.
|
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEhCtvujMdNX9ud2q8aSH5_vH2ZLJhFPhNtlgxOX0xC4eM-8PmKUSzTwRJhM3xMfDpXobe9JcmB_rh_JAqv5AL9qwRnNk1pMSCZn9THwCURlcSu3QiOJ5QlS2APhp6uKeAPjoDDdwX0RjSE/s320/br3.JPG) |
Bike with original steerer and all cables removed at the same time. I can just put it all back on when this experiment is done.
|
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEhLC6FI_myfFfB-0v5_XZGFowEGDjKlEJYYd37mlJ623ybf0drT6hug0fkpsZcJCwv2GbIKrHpI6Nqf5-eHzAgvR-R0HeyqtMANNUlZS5b3WfKrqyxcg-f2qjsTXmmTvOfZJGLMOqPiUvo/s320/br4.JPG) |

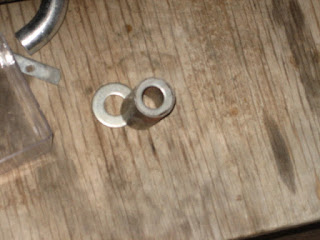

New steerer uses a 32mm tube ...
|
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEiwGsJu9JBGOeqTnFISb6Bs43ExiAfKr94UDuy_GGc8fkDwDrEdJZ2k-ky-jalFuh1nncOJq3d2oDtNQhE7K6J11Rq3lNf0soNAygJCCCC3CNUeuuAlBKaSWBZaNl4i3bqAydcHD1lno6A/s320/br5.JPG) |
brazed across a scooter fork. It has hand-made washers inside for extra strength.
|
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjnkVyacydo9DrzSQluhkpVypwdsGkohACSKuyC1IBs741Dq9glyAaejDXLRAzGz8pG35D6G6mb65TulJgk_0ljVmAuVS0HxcNpSKg5ZbYKKY4-NBJOsmgtWKtn2UqnB6Jiy-laCx4Kcuk/s320/br2.JPG) |
Here's the original plan, you can see the handlebar with built in brake levers resembles the folding handlebars.
|
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEghStiKzTn3_pZ41YpV-YWhWKlBke2Yck0ATCc2RtOWHzkxC_qbY2QgARZHsLtHLBGaQ5E_3ViEHYyXvNg48Dt9DBUI-a4iLGhChyphenhyphenPOHIPZvoCpJAu0IebqmuYJT-RUiJpoHfLimMEMSiY/s320/br9.JPG) |
Here is the result at the end of the day.
|
Hi
For a long time I've been riding bikes which have the brakes reversed - this is possible because the handlebars don't bear any of my body weight. When I slow down I can allow the natural decelleration body motion to press in the brakes, but I still have the normal hand-squeeze braking method. For a long time I've been thinking about using the decelleration only, like trailer brakes, but have only started building something in the last few days, after gathering a dead kid's scooter and stealing or swapping out bits from other bikes.
I was inspired by seeing a few bikes with Shimano DI2 electronic shifters on them at a recent bike show. Surely there are ways of streamlining a bike's controls that don't involve wifi, batteries and software! A recent Age article echoes these thoughts, "It was common for cars, fridges, and even coffee machines to have embedded software".
Its all going well and I will report further.
Regards Steve Nurse
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEh57bIOpAGAAR5mnQ3MFQZ7UXC9uYXQrDQ1BUF_rmJkIFYNnpiC7pYwW7YrAEPFrFckAFIpXThP4oDG2KF-eAY7GbL0fiiPDMsD_E_InMGbabL3va3UmAt5FG9za2cMMKBqIcVfme3Z8UU/s320/progress+mon.JPG) |
June 7, 2021, bit of progress today. I made some handlebar halves from a straight aluminium bar and gathered a few other bits, gearchanger, bar extenders and a bell. If the brakes don't work I will at least be able to warn people to PANIC and get out of the way. |
|
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEiy6Sqi3J6q4pwqZxon2JMOeptmxlj0_sU2174FMI2WOmi55WOq28QE_DNVpY1rWP9tbtYaYAXn6eOzqBmp648rm8ao-v9len_YD_qn1dGpFSddUL_M2kJRphnyn4_4A0VRUCYi1aV2b2s/s320/hbar1.JPG) |
Sketch for making combined handlebar and brake levers and
|
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEhKCP_BQ8hL20yUQpGKiWMvrzjcG5-yqKyamKgyx0ekcX8780E6YW_6QHO9jkKg6BS5C5MCe5Wm0GPmVihOt2gx_-3A8jMiwPKTB6RKN5dpCJmdmUuGWKY-kNNkVjysO63S1DPsgC50Iq4/s320/hbar2.JPG) |
Most of it already made. Top is the folding bar that is being replaced.
|
June 8, 2021, Good progress above as shown. I made the handlebars with some holes drilled so they can double as brake levers. Still a couple of days work before I can test the idea. The story continues in this post.
