![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEhAGP2mABvZuA-Exsqjo4WX6MgPuTD1Bx5K16JbApvKvWnEmUYZBcBMwxbxQvmuDpp_SZop5WXNDpc8x41JbfZA50FN2f1pOWyA-djAygDdIfkYSTKFbFrnuI-WNdE0skMuaVrZD5ZMrNPp/s320/P8250448.JPG) |
Lines drawn on the plywood were to ensure the drilling was in the right place. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEg7HlMTr5y9wPw_NcT_Fna9UyBhHlF7vNs-XRxS7dChT-vF7V1Bs313LPCAcAtyprbNv1N8cmAIH2YtgTbc0r7sXPhATsmp5We-tOadH1dnAJ5b8VPD6_w7pp6syZ0Ybljx2I2Ackbk_tUX/s320/P8250450.JPG) |

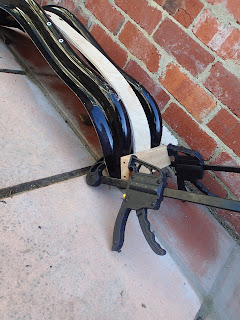

This jigging was used to hold the timber on the seat while the glue was drying, and |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEgB-psMjM7rI3QX07cSMSFA2NsMj2vX3mGjdpqhYjeDOinPo5hLlX4QXE5I4l90W2pGtNW24R6oZTvkH7NVBLwDwXzjwqlCGBE2cw5HtjEReNKiB_1wamx5AcSG6IcN7qy650Ae5Y9u3wd8/s320/P8250451.JPG) |
these 2 F-clamps screwed to a piece of wood to make the jigging more stable. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEgfkSaQX8styFgbxwdXaXgK2K2ZZi4b8QKE3AHy1EwTH84SxjXVGF4eVjAbCHIwGtVo4t8yQe_SFP35cS58R6yeaV5Kul67I_POXG1ZWI3W755IWN70zkL-BqXG7BB1HlH0Ff_9NafQvw9C/s320/P8250452.JPG) |
Glueing 3mm strips of ply together |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEj-uDKDjujBpcazDMFMFI4vOKGVZopRHSUkzQLPwGWeCziQZou5Jr1jKoNOii8EGstTRpVjMO-pGSV8nKbB7qemR4iN42XCNztSDrOPZt9nqVAJ7yA5aWMLDRztVACIQMMBg0uztzQZsalm/s320/P8280462.JPG) |

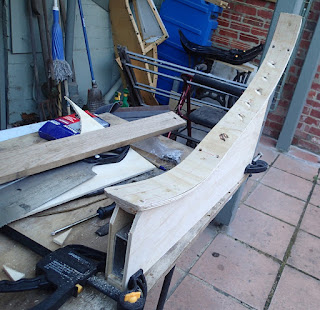

Piece of frame material used to mount seat on workbench |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEgQEmISvWFz4S5iGGhCS3B0ZkfLvW5MecYxztbODZmH6QDlp8sYTA_lf6_yILydjbROO69nirhB6_ZEexuvNzYYT3dxAWfByUBG3us2PV7XgE-06twVVI5IL57H0Cgpr9wr7QA6rZ62Boz3/s320/P8270455.JPG) |
Mock up of seat on trike |
Hi
Over the last few days, I have been making a seat for my
new fast trike and I'm almost finished. I haven't really worked out the steering arrangement yet, but I want to get a low, aerodynamic seat in place before the steering is set up.
So this shows the seat setup, I am using plywood to mount a Performer seat I bought from Alex McNee which had been gathering dust in the shed. It took me 2 goes to get the first 4 strips of ply glued together, but after that its been pretty smooth sailing. In about 2 days, the seat will be done and I can move on to steerer, brakes, gear lever etc. etc.
Its been good having a speedo on my everyday trike. I can only get anywhere near 40 kph on it by going down big hills, and there will be a lot of work to be done on this new trike if I'm to get up to decent speeds.
Regards
Steve Nurse
