![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjgVrx57YzwtmchKi2c91SxW5VMS8PmLtFGc4plKvL2bwozGocXl_Q8ifxlCgGVMsUhJXmp9OCEIVzgY5-1IMe3s9oaP-3oJKPQiocSm82Fip6DAbhxOeHctXOJBW4Q0_w6O1uEceROuSoa8WwoY6sux1KWhQGHH22mQaOKmseNYZML0_C0MB_eAL78/s320/wec0.JPG) |
A sketch on paper to get things going. After this I went straight to 3d cad and then the 3d printer.
|
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjRWWXp4DeLMTtFnVIfI0_cOtPuju6kFfuLAsS2V7njXZrSsfAkcmoFa6SzVB3BjUhWhoVX-aL3RfUk8Ct7pz-LTMLmNyShRcMdVZmfIBl5oPs-rSItRdR5WmJ3HgK-oM-N7U_Ts7QX7p4jTCf8ENcJ9K6JjUz6JS_Al84Uhc52VQ0DwAEK4sswmtWm/s320/wec12.JPG) |
Fork fairing in place.
|
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEiRzt_WEq-0n4x3b35bXfRrI_NYsekSSmaTioodJwsgmegs951z31cCL0LynuiL8qFoNT9Kn6qFEa9KBLXfR2SiMUWHEm0e7DHrVqlJaxTn1kHY5JSJFtN_8EmOEpyS6MX9sb1US1wmN7GEUedJ6J0OcyV0NBBECH0abFCl0GaRDkKL-zBl3e1N4Im4/s320/wec11.JPG) |
The fork was drilled and tapped to make the screw holes. Fairings are on rubber washers, it all fits together quite neatly.
|
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEgFuSlhfP6LEsLuoMgN_hoJmVyQC6ok0lgATUMMamY-y_WOG-v6hAtLMpZGklSldA7KFFjVXXz6mWcspGy48EfDigWD29085H2KBPcZu3nwTWyOtjpHKo4yVu2-0jEYuqYZctVicMkxlZ-EDUgWaQ-zAGs4RD-xFEjqXOKVDak-d10bNujfYHQTfaTZ/s320/wec10.JPG) |
New spacers surrounded by fork fairings.
|
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEis60U_xKzpV_ClwodRBjpa6v58NTQNRLq3HrKwn-op1wpsztNtzUjt3XntA_QL_-a9ckIWCW_BZkIisxTAONxK2KGO8q6uASGQt9Ew3SB2DiWl8mUGQe9xXNBJxtDdY9SNOGCnenU4U2bfNBQuSlVuogt567u5l7DzaidzmtCSk90W8BfLolW_sF3z/s320/wec09.JPG) |

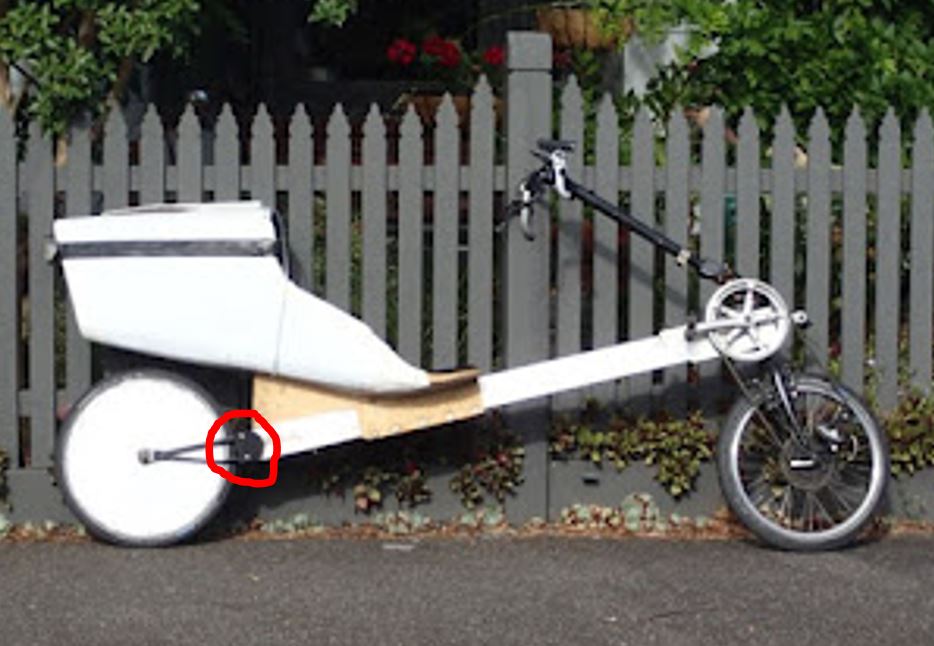

Bike back together. The new covers are just in front of the back wheel, which . . . .
|
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEisbjfVxNw_kEdYmf-mCN8TedA_S3h9eUf4udngBYxVjRFCxqC9DGx7lmRzGC-pVUlMCOrcBoMq-Mkatia7WAE8EP9gW6_5i2rS9as912XR8S9ydeowCWvZWeHmgQ_gazDt2-EbvyUfN7FNwBLKVr_XNuiKH9t0VAYeqZoaxxrgCyzAX66c4S3ID2Y_/s320/wec10.JPG) |
this pic shows clearly!
|
Hi A week ago, I used my HPV's leaning trike module to finish a 200k ride, as documented here. The trike module was swapped in to replace an ailing bike module.
Since then I have repaired and improved the bike module, replacing 3d printed spacers, and adding new rear fork fairings.
The fork fairings are held on by 3/16" screws with nice flat aero heads. I drilled and tapped into the fork to make the screw holes, but where the holes are drilled there is a lot of brazing all around, so little stress on the frame and little chance of fatigue cracks and failure. That's the theory anyway!
I had tried to make the fork fairings before, but this time I got there first go and am happy with the result. Now for a front fairing!
