![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEhJDOkKU46s06yMerCuAs9ZKbPRQso6ENtsXY0Uy9m_qGPF4uCG6Tc4_3UFK_5bqznsON9-2lj5LdSsHGhacW_5dmX6igE1pKUym7Srr9FrDnquEm8Uq7RfhyphenhyphenW0sD9jx-860cbA_VbXBdA/s320/f3.JPG) |
Inside of bike trainer leg with crush bar |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEiMwyeLQD1dvGYZAkbTh3ehIMu9e5mOzohnLtg6MujYqIho9EhYeP7MgN26lNpBBGYOt1sxo2TNcvpBw8GppsjCk9MPeDDnf6ZX4cgHmr0WsiTeI7h-qJmo2j-_M3ZnUuy_Gq5siYCkH9c/s320/f4.JPG) |
Shortening bike trainer wheels with pipe cutter with |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEgaZDZ-nmWZcJYPYghOz1GhD5unc0fS5lbrhH_KOfqht8I02j1wjla9MTQ8W8jtDUp9n0qDit9z_vaNPLhkE6wXQEOWp2n23MLVnNFezkOJM03DWlP539Ck2LTKTlDWYYMiHkNWhgjsEFQ/s320/f12.JPG) |
this result. The trainer now suits the 20" bike wheel and means I get a realistic idea of the view over the fairing. Struts supporting the bottom of the fairing are modified light steel tent pole tubes. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEj4A6yET250d8st733VD7s7_LOKXawklBs2UT9Oiquuw1wbuWxeP_POnkAe20V66ZNUXX1c0bbvrSIWHcpEuSoh_1I-BVerWyvOTy7UarOW6mptlnidPhoaT5QO-x4C0Jjdyo82IlUXHGc/s320/f2.JPG) |
Glueing fibreglass rods into fairing support brackets. These rods help distribute stress into the parts which are home 3d printed. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjQeT1xfAcJyaiYAmhZf9k9kYaldr9DL1ue24JbhEYc9ZFbRSbqnB5X2TLHAr5EVmA7tt9EtGR6LCNQdoropciVEon6nOJc469qB4iMuB3tni24XB_GupVhiy9ktGGgnS1hBmx5NwpsIL8/s320/f10.JPG) |
Mounting bracket and... |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEh356IqBJLnYNsNejc9r_cELQywsvuClc377oHRmQwwMWVd5eppV2_mbX7LtmqFeb9Y76V0oZoRS5_4MHI2mUN1cD3U0RmTGncM41bSKvb00sVZAYbuDDwE_hO9VlZuaFRDcNvDmJLofj4/s320/f11.JPG) |
fairing support. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEhVukmT2jJffYN_ZSkVPllx5JB00Bp6r1ulV8rE15zQBvK7U7rjyFRZoT7-WAejsysPPKqkUADM86yGBA6CRKyeMicE-luXiUSkMSslwFS0WrDY8NfmpHZR_XulGL_EZiourS6g2g0lG2M/s320/f5.JPG) |

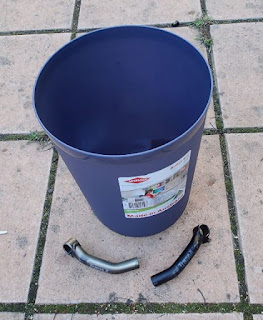

A bucket from Bunnings and some handlebar ends from the shed. Bits of the bucket are now the front of the fairing and the handlebar ends ... |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEigDmhIsC8T0UanZNf61yQcIil2YyIFgj_HVmW2nFReqwl73Y-gdROIgEJOWP2b-kRcUBkV1QoaBjSJ3sxQ7CDlvFH8HAumNjliwweboop_iNhWm1PT3K5DOr_UrKMBK8_TYsQsGfHqKBQ/s320/f14.JPG) |
fitted on the handlebars with white nylon bolts to hold the fairing top. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEi0iL6SKSktgZUcXPnsLQENeHxz6nYKq8SOshVUza9teN2GFeVJEcguGg4LUJkoywz2mLDzLgzD5EkknaoEzPKoV6q4kb0NFzHJAnQQfPCukPuY8T46ulw6XH_ZNjNId2dkqUyuSXHJpXU/s320/f6.JPG) |

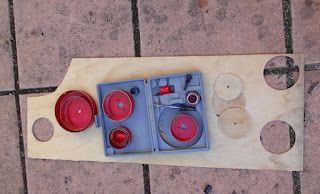

Using a holesaw set to make.... |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEi8MkcqB9nvyuLFFcMQ-cniLAKEwZhV2YarWoWzUUyIfa27ottOSZcAfy5PA6om9GD54r-wTDLmNJY8syFWcS6yFbLNip04RgO4q5UCl0HWxa0Yg_-ohYl1emnGtQIollqo2tUS9-yajRc/s320/f7.JPG) |
this small piece which covers a hole in the new, longer fairing. Without further modifying the fairing, I can mount a light to this wooden piece. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEgTmzzh4YB0BtnQGlwl07Dvm_koBybTu3Qcyi0YXhfABBW6ha9apGhEBBCBXNtzhkxyXHxv7T1DV92OAr_9lCgCTQZpdBNz6nfs78M6WZyc59j4Rjyg7zmwpcllxilPohPM0lpZdhWZk9Q/s320/f13.JPG) |
This set of fairing mounts didn't work as it placed the fairing support right near the pedals, causing interference. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEh6x3TOnXfhRoMypHWy0TyLuR2NkBTBG13alfwMssCohlZ8KBEBmmdNoHEEFtjbrn0KteYkew57E-1WHlgVCT8MQ-bCGNXtWupPMWJvQEQP0MiK8OR5qiqE2OX-x8Ef3DNHflg4Nyk7QvA/s320/f8.JPG) |

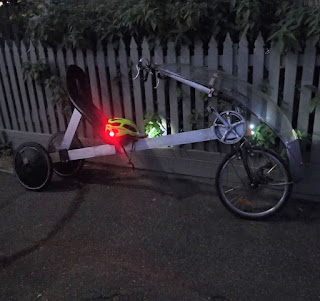

End result after a quick test ride. Still quite a few things to fix but I'm quite happy. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEj274MsoYZSbg5ZVjqdGFqR-5FjF1ZFB79OlqeT5mBACsO2XltCOC8TyooikAF_ykV-2_5DU1Ee7G4HrZ_2m2XgERAjZHNVkqR2dn0aFtIhwNfyL0dJoOQ7M2bME_u0fApfwUyRMSH3zN4/s320/f15.JPG) |

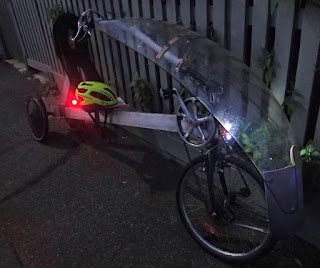

Another view, plan to go for a longer ride tomorrow. |
Hi, this post is mostly pictorial again. The fairing I received from
OzHpv mates 5 or 6 weeks ago is now on a bike and ready for an 80k or so test ride tomorrow. The bike trainer I was using to test the fairing was for 700c bikes, and I cut it down to better sit a 20" and so I could get a realistic idea of my view of the road when testing. The fairing mounting has been totally home made and the fairing has been extended using parts of a bucket. Very happy with the results sofar. For a long time I have been aware that my front wheel drive bikes are an aerodynamic mess at the front, and this fairing should fix some of that.
Regards
Steve Nurse
Update, July 7: I took the trike for a ride of about 60k today (Mordialloc and back via beach road), with no real problems. I had to stop a few times to do up screws which attach the fairing but that was to be expected as I hadn't bothered with nyloc nuts, spring washers etc. I'm fairly out of condition and didn't stop to eat, drink or wee till I got back within a few k of home so was tired, thirsty and hungry when I got in. Happy with the bikes speed and I overtook a few of the slower Beach road roadies. Didn't take many photos, and the ones I did take were undramatic and out of focus. Here is the best of them showing a screw coming undone!
Update, July 23: From here, the story goes sideways, I used the design of one of the fairing mounts for other purposes. Flick over to my design blog
here for details. Trike is ready for a longer ride now, will report progress. Regards Steve Nurse
